Beautiful 300B tube amplifier version 1

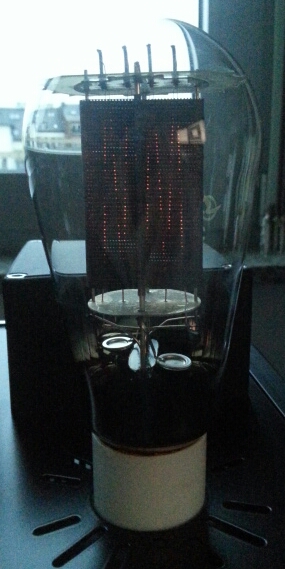

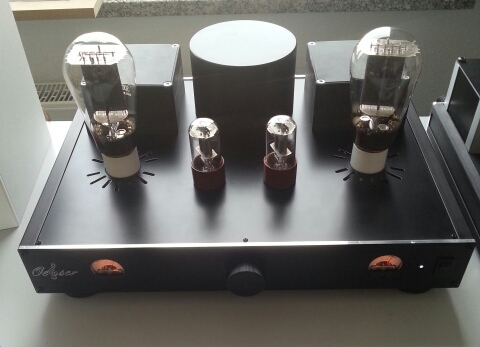

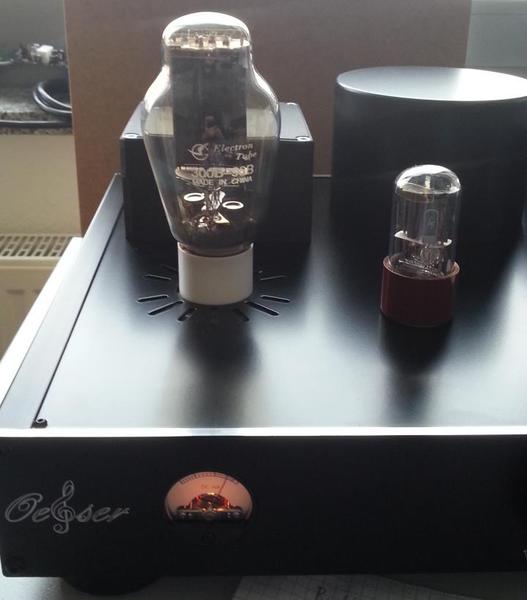

This is my 300B tube amplifier design (vers.1) Pre-amplifier and driver are a 6SN7GT Tube. In the second picture you can see a 300B globe shaped mesh-grid version, very beautiful glow.

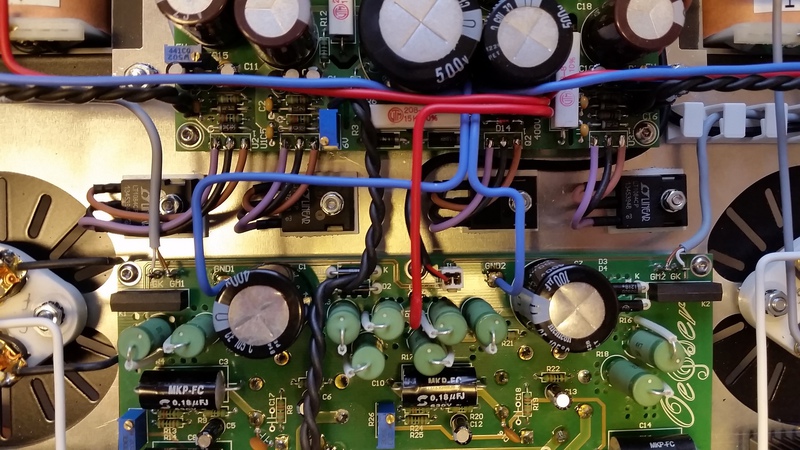

All capacitors are SOLEN FAST or high grade aluminium capacitors.

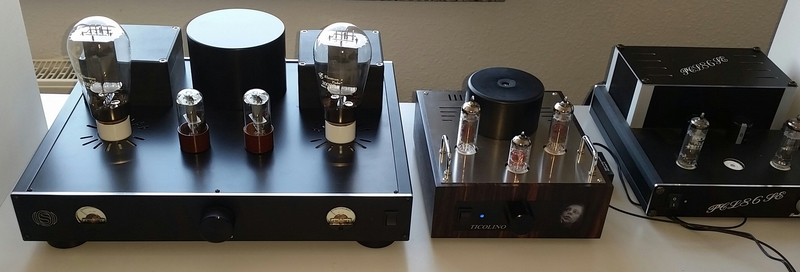

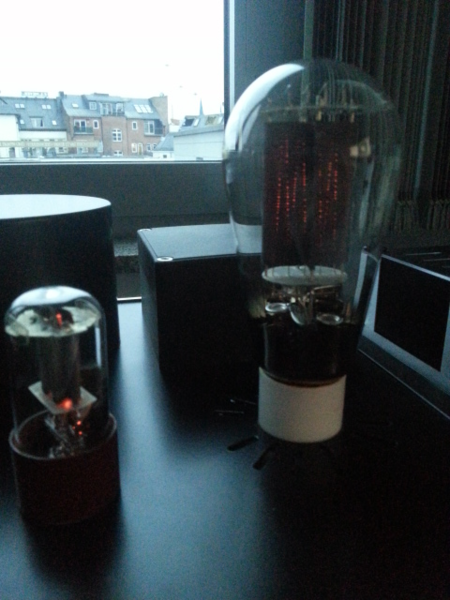

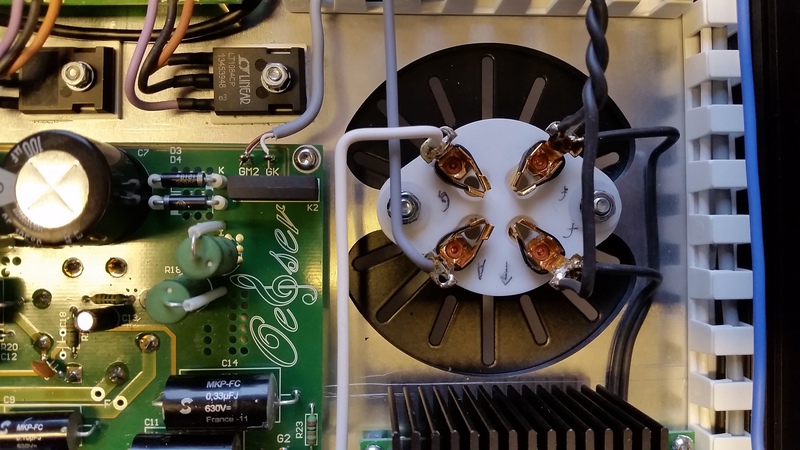

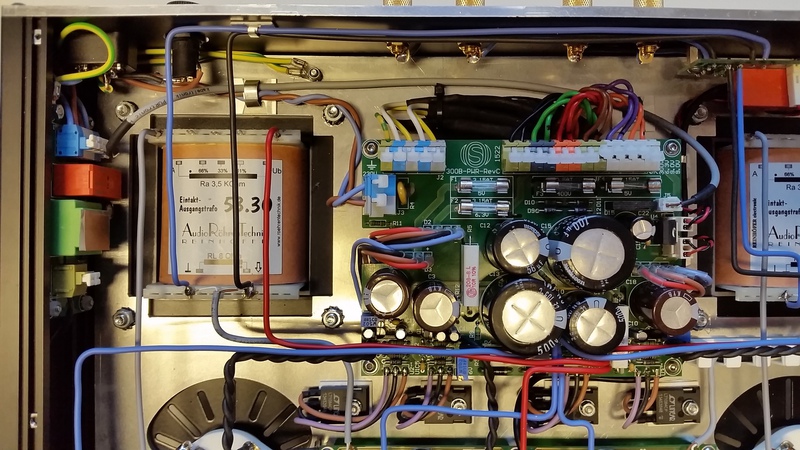

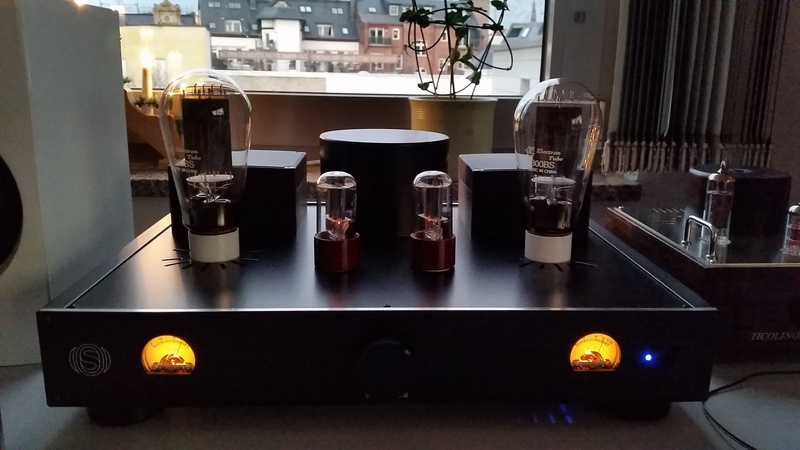

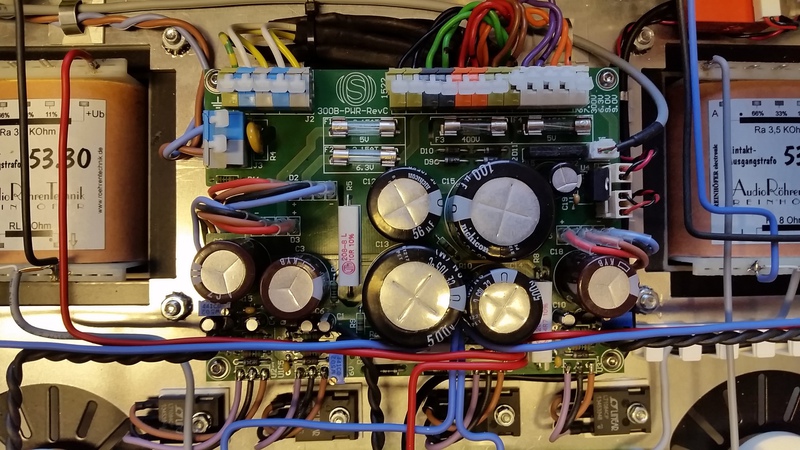

Please see some pictures of the design below.
